Produit

Photo pour information, le produit actuel peut être différent

Numéro d'article

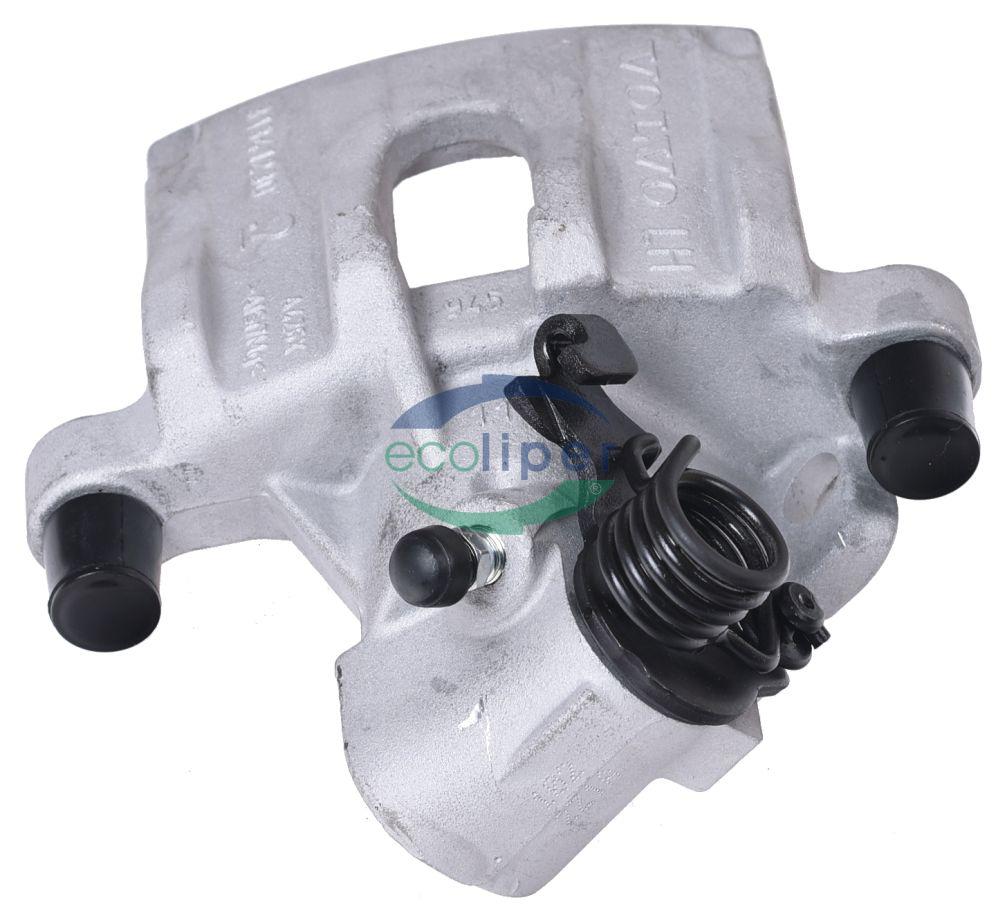

222445

Numéro EAN

5414560172001

Caractéristiques

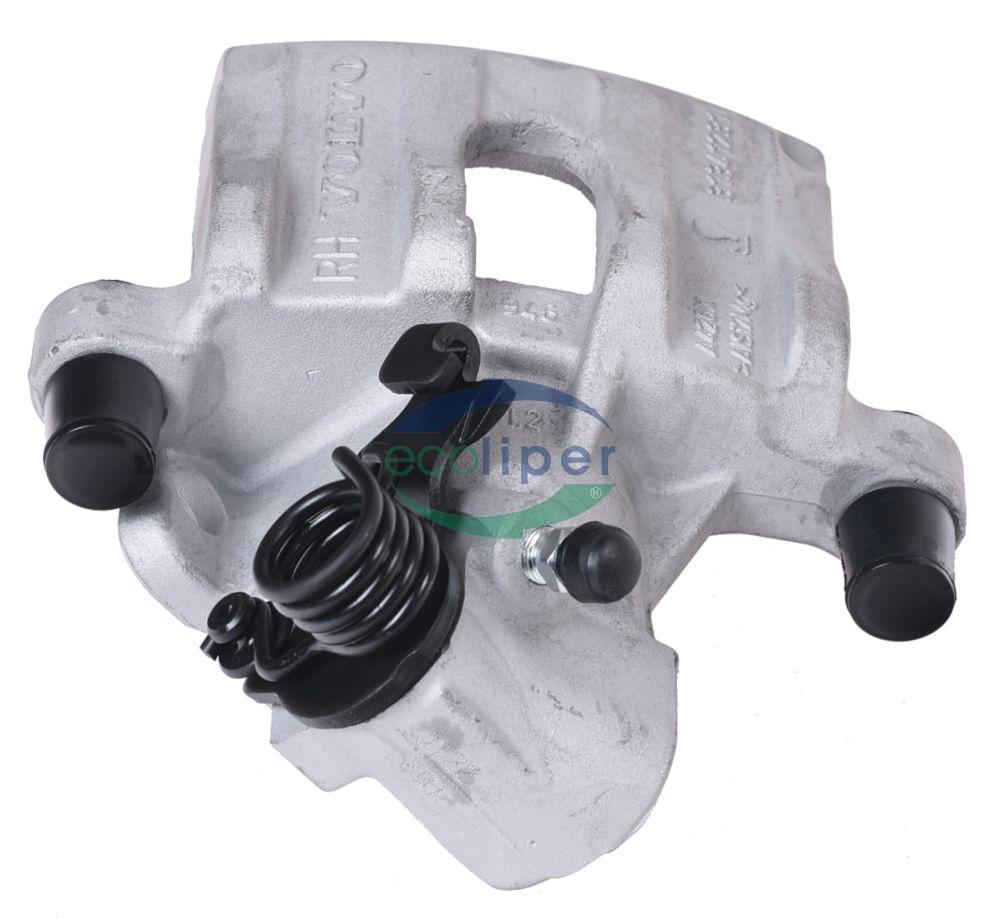

Référence opposée	222446

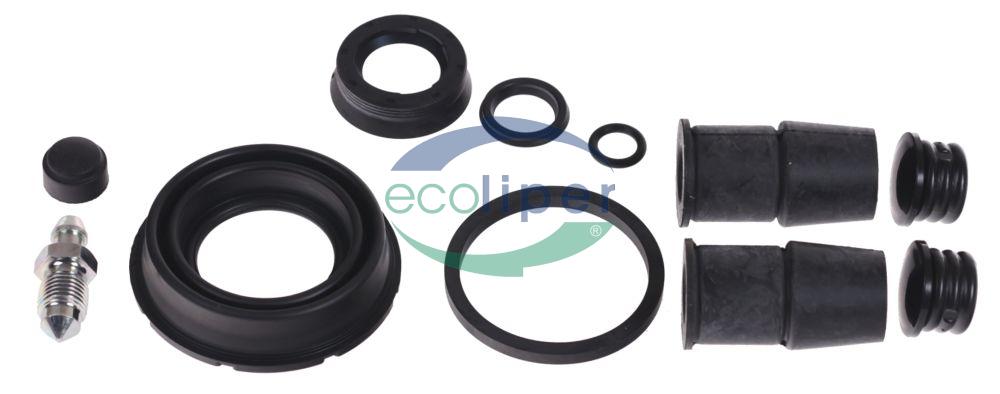

Kit(s)	KI38157

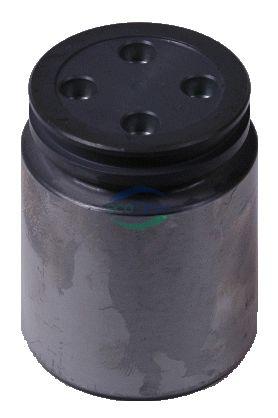

Piston(s)	PI3845
Diamètre(s) piston(s) (mm)	1x Ø38
Fabricant	ATE
Position sur la voiture	Etrier arrière gauche
OE	1511569, 1730929, 1760071, 1761268, 1761756, 2 210 215, 2 332 705, 36000900, 36001703, 36001765, 8M51-2M089-BA, 8M51-2M089-BB, 8M51-2M089-BC, 8M51-2M089-CA, 8M51-2M089-CB, 8M51 2M089BE, BPYK-26-71XC, RM8M5J-2M089-BC
Marque	FORD MAZDA VOLVO
Epaisseur disque (mm)	11,0

Marque	Réference marque	Remarque
FORD	1511569
FORD	1730929
FORD	1760071
FORD	1761268
FORD	1761756
FORD	2 210 215
FORD	2 332 705
FORD	8M51-2M089-BA
FORD	8M51-2M089-BB
FORD	8M51-2M089-BC
FORD	8M51 2M089BE
FORD	8M51-2M089-CA
FORD	8M51-2M089-CB
FORD	RM8M5J-2M089-BC
MAZDA	BPYK-26-71XC
VOLVO	36000900
VOLVO	36001703
VOLVO	36001765

FORD

Type	KW	CH	Chassis	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur	Diamètre disque
C-MAX II (DXA/CB7, DXA/CEU) (04/10-)
1.0 EcoBoost	74	100	DXA/CB7, DXA/CEU	1,0	10/12-06/19	ATE	R	1	38	222445	222446	RR	11,0	265
1.0 EcoBoost	92	125	DXA/CB7, DXA/CEU	1,0	10/12-06/19	ATE	R	1	38	222445	222446	RR	11,0	265
1.5 EcoBoost	110	150	DXA/CB7, DXA/CEU	1,5	03/15-	ATE	R	1	38	222445	222446	RR	11,0	265
1.5 EcoBoost	134	182	DXA/CB7, DXA/CEU	1,5	03/15-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 Ti	63	85	DXA/CB7, DXA/CEU	1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 Ti	77	105	DXA/CB7, DXA/CEU	1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 LPG	86	117	DXA/CB7, DXA/CEU	1,6	02/12-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 Flexifuel	88	120	DXA/CB7, DXA/CEU	1,6	02/11-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 LPG	88	120	DXA/CB7, DXA/CEU	1,6	02/12-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 Ti	92	125	DXA/CB7, DXA/CEU	1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 EcoBoost	110	150	DXA/CB7, DXA/CEU	1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 EcoBoost	134	182	DXA/CB7, DXA/CEU	1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
1.5 TDCi ECOnetic	77	105	DXA/CB7, DXA/CEU	1,5	03/15-	ATE	R	1	38	222445	222446	RR	11,0	265
1.5 TDCi	88	120	DXA/CB7, DXA/CEU	1,5	03/15-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 TDCi	70	95	DXA/CB7, DXA/CEU	1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 TDCi	85	115	DXA/CB7, DXA/CEU	1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 TDCi	85	115	DXA/CB7, DXA/CEU	2,0	02/11-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 TDCi	100	136	DXA/CB7, DXA/CEU	2,0	02/11-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 TDCi	103	140	DXA/CB7, DXA/CEU	2,0	04/10-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 TDCi	120	163	DXA/CB7, DXA/CEU	2,0	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
C-MAX II Van (12/10-)
1.0 EcoBoost	74	100		1,0	10/12-	ATE	R	1	38	222445	222446	RR	11,0	265
1.0 EcoBoost	92	125		1,0	10/12-	ATE	R	1	38	222445	222446	RR	11,0	265
1.5 TDCi ECOnetic	77	105		1,5	03/15-	ATE	R	1	38	222445	222446	RR	11,0	265
1.5 TDCi	88	120		1,5	03/15-	ATE	R	1	38	222445	222446	RR	11,0	265
1.5 EcoBoost	110	150		1,5	03/15-	ATE	R	1	38	222445	222446	RR	11,0	265
1.5 EcoBoost	134	182		1,5	03/15-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 TDCi	70	95		1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 TDCi	85	115		1,6	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 TDCi	85	115		2,0	02/11-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 TDCi	103	140		2,0	02/11-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 TDCi	120	163		2,0	12/10-	ATE	R	1	38	222445	222446	RR	11,0	265

MAZDA

Type	KW	CH	Chassis	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur	Diamètre disque
3 (BL) \| 3 SPORT (12/08-)
1.6 MZR	77	105	BL	1,6	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 MZR	79	107	BL	1,6	01/10-12/13	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 MZR CD	80	109	BL	1,6	12/08-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 MZR CD	85	116	BL	1,6	11/10-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 MZR	108	147	BL	2,0	06/10-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 MZR	110	150	BL	2,0	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 MZR DISI	111	151	BL	2,0	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
2.2 MZR CD	110	150	BL	2,2	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
2.2 MZR CD	136	185	BL	2,2	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
2.3 MPS Turbo	191	260	BL	2,3	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
3 Saloon (BL) (12/08-)
1.6 MZR	77	105	BL	1,6	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 MZR	110	150	BL	2,0	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
2.0 MZR DISI	111	151	BL	2,0	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 MZR CD	80	109	BL	1,6	12/08-	ATE	R	1	38	222445	222446	RR	11,0	265
1.6 MZR CD	85	116	BL	1,6	11/10-	ATE	R	1	38	222445	222446	RR	11,0	265
2.2 MZR CD	110	150	BL	2,2	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265
2.2 MZR CD	136	185	BL	2,2	06/09-	ATE	R	1	38	222445	222446	RR	11,0	265

VOLVO

Type	KW	CH	Chassis	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur
C70 II Convertible (542) (03/06-06/13)
C 70 II Décapotable 2,4 (Ch. 77107->)	103	140	542	2,4	03/06-10/09	ATE	R	1	38	222445	222446	RR	11,0
C 70 II Décapotable 2,4 i(Ch. 77107->)	125	170	542	2,4	03/06-10/09	ATE	R	1	38	222445	222446	RR	11,0
C 70 II Décapotable 2,5 T5(Ch. 77107->)	162	220	542	2,5	03/06-02/07	ATE	R	1	38	222445	222446	RR	11,0
C 70 II Décapotable 2,5 T5(Ch. 77107->)	169	230	542	2,5	03/07-10/09	ATE	R	1	38	222445	222446	RR	11,0
C 70 II Décapotable 2,0 D(Ch. 77107->)	100	136	542	2,0	01/08-10/09	ATE	R	1	38	222445	222446	RR	11,0
C 70 II Décapotable 2,0 D3(Ch. 77107->)	110	150	542	2,0	10/10-06/13	ATE	R	1	38	222445	222446	RR	11,0
C 70 II Décapotable 2,0 D4(Ch. 77107->)	130	177	542	2,0	10/10-06/13	ATE	R	1	38	222445	222446	RR	11,0
C 70 II Décapotable 2,4 D(Ch. 77107->)	120	163	542	2,4	03/07-06/13	ATE	R	1	38	222445	222446	RR	11,0
C 70 II Décapotable 2,4 D5(Ch. 77107->)	132	180	542	2,4	03/06-06/13	ATE	R	1	38	222445	222446	RR	11,0
S40 II (544) (01/04-12/12)
2.5 T5 (Ch. 462753->)	162	220	544	2,5	01/04-12/07	ATE	R	1	38	222445	222446	RR	11,0
2.5 T5 AWD (Ch. 462753->)	162	220	544	2,5	04/04-12/07	ATE	R	1	38	222445	222446	RR	11,0
2.5 T5 (Ch. 462753->)	169	230	544	2,5	03/07-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.5 T5 AWD (Ch. 462753->)	169	230	544	2,5	03/07-12/10	ATE	R	1	38	222445	222446	RR	11,0
2.0 D3 (Ch. 462753->)	110	150	544	2,0	10/10-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.0 D4 (Ch. 462753->)	130	177	544	2,0	10/10-12/12	ATE	R	1	38	222445	222446	RR	11,0
1.6 (Ch. 462753->)	74	101	544	1,6	01/05-12/12	ATE	R	1	38	222445	222446	RR	11,0
1.8 (Ch. 462753->)	92	125	544	1,8	04/04-12/10	ATE	R	1	38	222445	222446	RR	11,0
1.8 FlexFuel (Ch. 462753->)	92	125	544	1,8	01/06-12/10	ATE	R	1	38	222445	222446	RR	11,0
2.0 (Ch. 462753->)	107	146	544	2,0	10/06-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.0 F (Ch. 462753->)	107	146	544	2,0	10/09-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.4 (Ch. 462753->)	103	140	544	2,4	01/04-12/10	ATE	R	1	38	222445	222446	RR	11,0
2.4 (Ch. 462753->)	125	170	544	2,4	01/04-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.4 AWD (Ch. 462753->)	125	170	544	2,4	08/06-12/12	ATE	R	1	38	222445	222446	RR	11,0
1.6 D (Ch. 462753->)	81	110	544	1,6	01/05-12/12	ATE	R	1	38	222445	222446	RR	11,0
1.6 D2 (Ch. 462753->)	84	115	544	1,6	10/10-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.0 CDI (Ch. 462753->)	98	133	544	2,0	07/05-12/06	ATE	R	1	38	222445	222446	RR	11,0
2.0 D (Ch. 462753->)	100	136	544	2,0	01/04-12/10	ATE	R	1	38	222445	222446	RR	11,0
2.4 CDI (Ch. 462753->)	120	163	544	2,4	03/07-12/10	ATE	R	1	38	222445	222446	RR	11,0
2.4 D5 (Ch. 462753->)	132	179	544	2,4	03/06-12/10	ATE	R	1	38	222445	222446	RR	11,0
V50 (545) (12/03-12/12)
1.6	74	101	545	1,6	01/05-12/12	ATE	R	1	38	222445	222446	RR	11,0
1.8	92	125	545	1,8	04/04-12/10	ATE	R	1	38	222445	222446	RR	11,0
1.8 FlexFuel	92	125	545	1,8	01/05-12/10	ATE	R	1	38	222445	222446	RR	11,0
1.8 BiFuel	93	126	545	1,8	01/09-09/10	ATE	R	1	38	222445	222446	RR	11,0
2.0	107	146	545	2,0	10/06-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.0 FlexFuel	107	146	545	2,0	01/10-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.4	103	140	545	2,4	04/04-12/10	ATE	R	1	38	222445	222446	RR	11,0
2.4	125	170	545	2,4	04/04-12/10	ATE	R	1	38	222445	222446	RR	11,0
2.4 AWD	125	170	545	2,4	08/06-12/09	ATE	R	1	38	222445	222446	RR	11,0
T5	162	220	545	2,5	04/04-12/07	ATE	R	1	38	222445	222446	RR	11,0
T5 AWD	162	220	545	2,5	04/04-12/07	ATE	R	1	38	222445	222446	RR	11,0
T5	169	230	545	2,5	03/07-12/12	ATE	R	1	38	222445	222446	RR	11,0
T5 AWD	169	230	545	2,5	03/07-12/10	ATE	R	1	38	222445	222446	RR	11,0
1.6 D	80	109	545	1,6	03/05-12/12	ATE	R	1	38	222445	222446	RR	11,0
1.6 D	81	110	545	1,6	01/05-12/11	ATE	R	1	38	222445	222446	RR	11,0
1.6 D2	84	114	545	1,6	01/10-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.0 D4	96	131	545	2,0	07/05-12/06	ATE	R	1	38	222445	222446	RR	11,0
2.0 CDI	98	133	545	2,0	12/03-12/06	ATE	R	1	38	222445	222446	RR	11,0
2.0 D	100	136	545	2,0	04/04-12/10	ATE	R	1	38	222445	222446	RR	11,0
D3	110	150	545	2,0	10/10-12/12	ATE	R	1	38	222445	222446	RR	11,0
D4	130	177	545	2,0	10/10-12/12	ATE	R	1	38	222445	222446	RR	11,0
2.4 Tdi	120	163	545	2,4	05/07-12/10	ATE	R	1	38	222445	222446	RR	11,0
2.4 D5	132	179	545	2,4	03/06-12/10	ATE	R	1	38	222445	222446	RR	11,0

222445

Produits associés

222446

KI38157

PI3845
