Produit

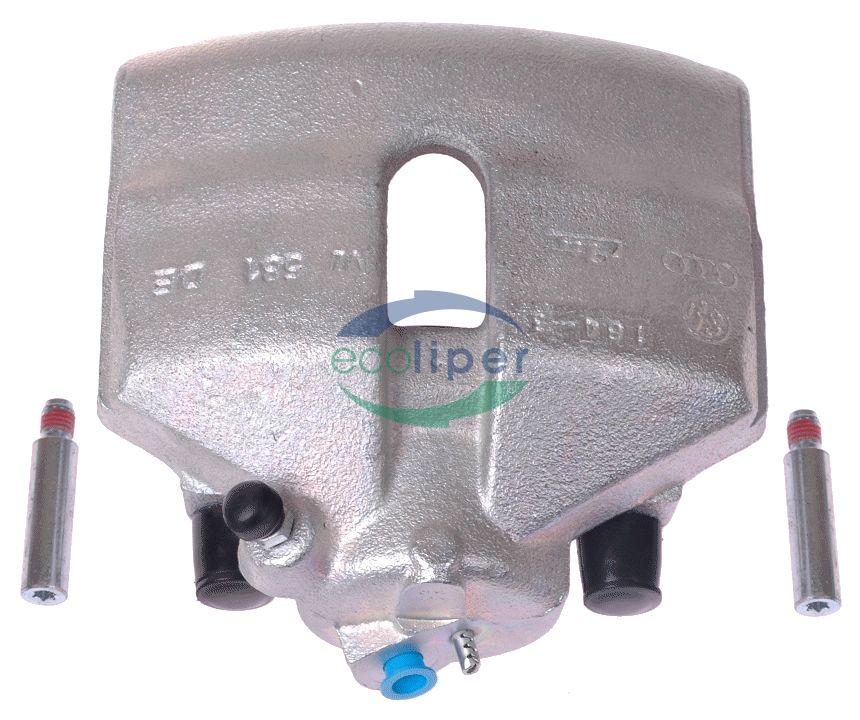

Photo pour information, le produit actuel peut être différent

Numéro d'article

221619

Numéro EAN

5414560146118

Caractéristiques

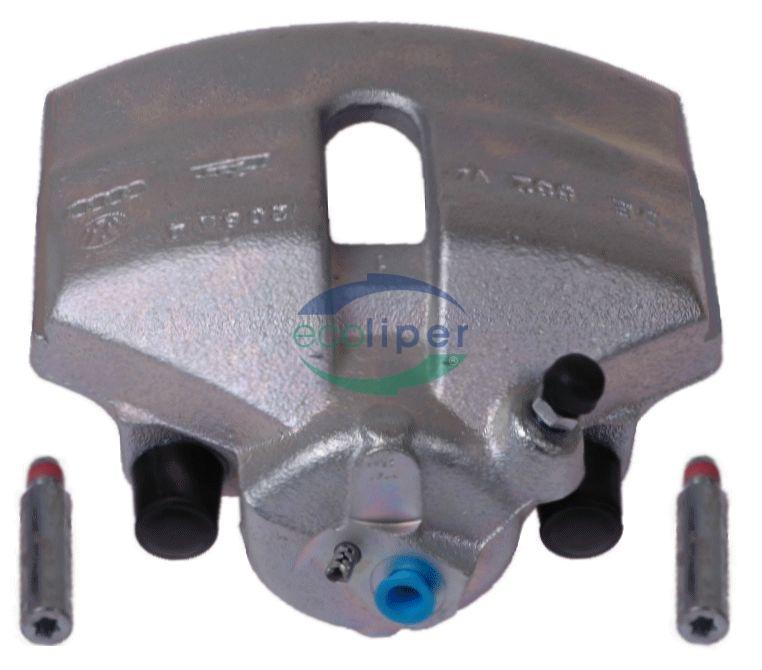

Référence opposée	221620

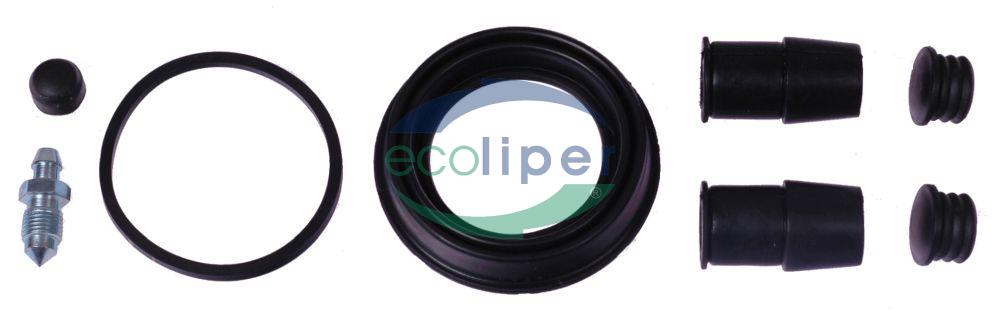

Kit(s)	KC22001, KC22001S, KI54180

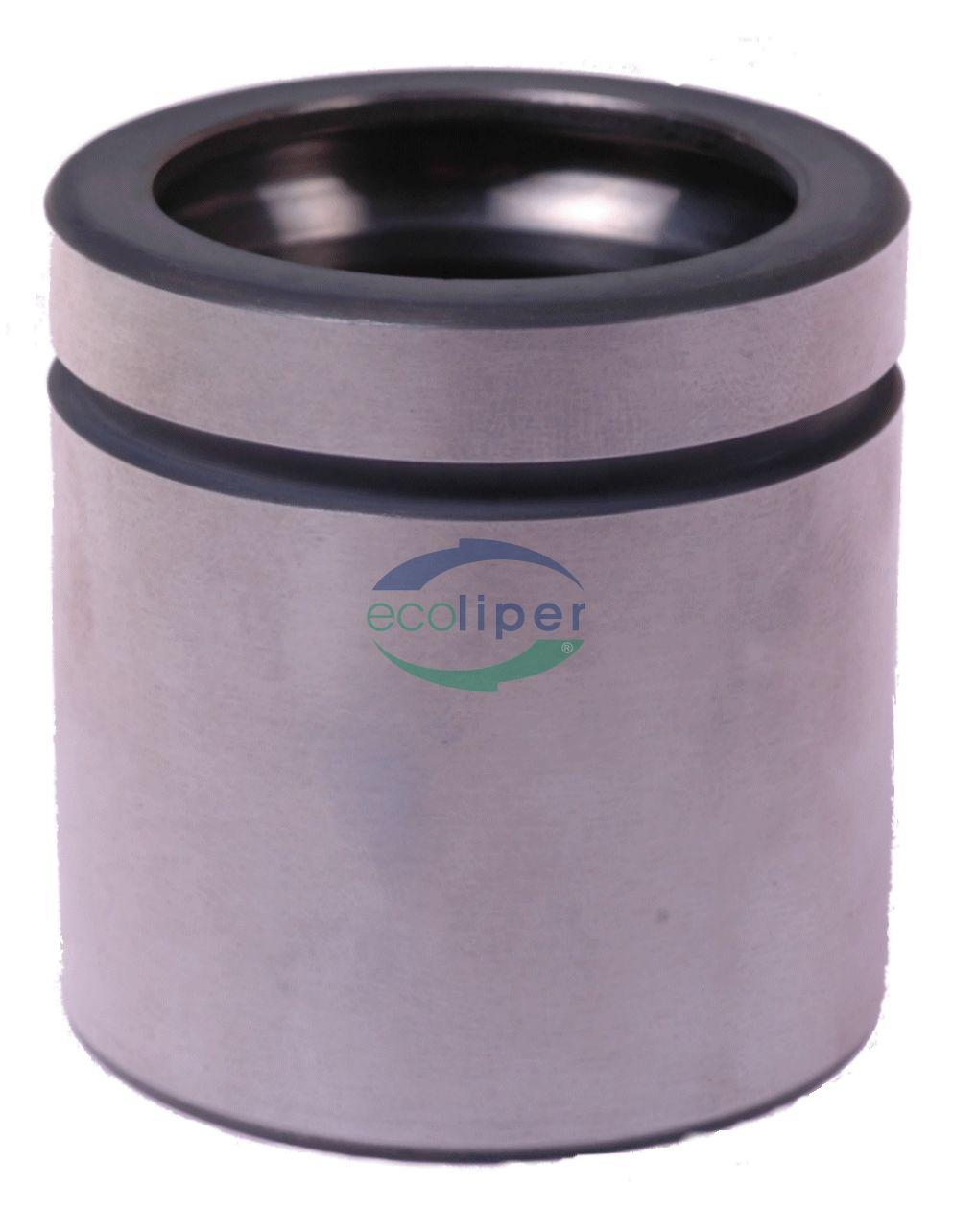

Piston(s)	PI5479
Diamètre(s) piston(s) (mm)	1x Ø54
Fabricant	ATE
Position sur la voiture	Etrier avant gauche
OE	1K0 615 123, 1K0 615 123 B, 1K0 615 123 E, 1K0 615 123 EX, 1K0 615 123 F, 1K0 615 123 M, 1Z0 615 123, 6R0 615 123, 8J0 615 123 A, 8X0 615 123, 8X0 615 123 A, 8X0 615 123 B
Marque	AUDI SEAT SKODA ...
Epaisseur disque (mm)	25,0

Marque	Réference marque	Remarque
SEAT	1K0 615 123 B
SEAT	1K0 615 123 E
SEAT	1K0 615 123 EX
SEAT	6R0 615 123
SEAT	8X0 615 123
SEAT	8X0 615 123 A
SEAT	8X0 615 123 B
SKODA	1K0 615 123 B
SKODA	1K0 615 123 E
SKODA	1K0 615 123 EX
SKODA	1Z0 615 123
SKODA	6R0 615 123
SKODA	8X0 615 123
SKODA	8X0 615 123 A
SKODA	8X0 615 123 B
VAG	1K0 615 123
VAG	1K0 615 123 B
VAG	1K0 615 123 E
VAG	1K0 615 123 EX
VAG	1K0 615 123 F	Échangeable, mais d'autres accessoires standard
VAG	1K0 615 123 M
VAG	6R0 615 123
VAG	8J0 615 123 A	Échangeable, mais d'autres accessoires standard
VAG	8X0 615 123
VAG	8X0 615 123 A
VAG	8X0 615 123 B

AUDI

Type	KW	CH	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur
A1 (8X1, 8XK) \| A1 / S1 (05/10-10/18)
1.0 TFSI	60	82	1,0	01/16-10/18	ATE	F	1	54	221619	221620	FF	25,0
1.0 TFSI	70	95	1,0	03/15-10/18	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	136	185	1,4	01/11-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	103	140	1,4	04/12-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	90	122	1,4	05/10-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	92	125	1,4	11/14-10/18	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	11/14-10/18	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	03/11-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	05/10-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	85	115	1,6	11/14-10/18	ATE	F	1	54	221619	221620	FF	25,0
1.8 TFSI	141	192	1,8	02/15-10/18	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	05/12-04/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	105	143	2,0	09/11-04/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI quattro	188	256	2,0	03/12-11/12	ATE	F	1	54	221619	221620	FF	25,0
A1 Sportback (8XA, 8XF) \| A1 / S1 (09/11-10/18)
1.2 TFSI	63	86	1,2	01/12-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	11/11-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	85	115	1,6	11/14-10/18	ATE	F	1	54	221619	221620	FF	25,0
1.8 TFSI	141	192	1,8	02/15-10/18	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	05/12-04/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	105	143	2,0	09/11-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	103	140	1,4	04/12-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	90	122	1,4	11/11-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	136	185	1,4	11/11-04/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	92	125	1,4	11/14-10/18	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	11/14-10/18	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	11/11-04/15	ATE	F	1	54	221619	221620	FF	25,0
A3 (8P1) \| A3 / S3 (05/03-08/12)
1.2 TSI	77	105	1,2	04/10-08/12	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	92	125	1,4	09/07-08/12	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102	1,6	05/03-08/12	ATE	F	1	54	221619	221620	FF	25,0
1.6 E-Power	75	102	1,6	01/11-08/12	ATE	F	1	54	221619	221620	FF	25,0
1.6 FSI	85	115	1,6	08/03-09/07	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	05/09-08/12	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	05/09-08/12	ATE	F	1	54	221619	221620	FF	25,0
1.8 TFSI	118	160	1,8	11/06-08/12	ATE	F	1	54	221619	221620	FF	25,0
1.8 TFSI quattro	118	160	1,8	07/08-08/12	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	05/03-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	05/03-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	03/06-08/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	05/03-08/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	06/05-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	120	163	2,0	06/06-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	05/03-08/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V quattro	103	140	2,0	08/04-08/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI quattro	103	140	2,0	01/06-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI quattro	125	170	2,0	03/06-08/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	09/04-08/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI quattro	147	200	2,0	09/04-08/12	ATE	F	1	54	221619	221620	FF	25,0
3.2 V6 quattro	184	250	3,2	07/03-05/09	ATE	F	1	54	221619	221620	FF	25,0
S3 quattro	188	256	2,0	02/07-08/12	ATE	F	1	54	221619	221620	FF	25,0
S3 quattro	195	265	2,0	11/06-08/12	ATE	F	1	54	221619	221620	FF	25,0
A3 Convertible (8P7) (04/08-)
1.2 TFSI	77	105	1,2	03/10-05/13	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102	1,6	09/08-05/10	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	05/09-05/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TFSI	118	160	1,8	04/08-05/13	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	04/08-10/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	04/08-05/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	04/08-05/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	04/08-05/13	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	92	125	1,4	02/11-05/13	ATE	F	1	54	221619	221620	FF	25,0
A3 Sportback (8PA) \| A3 / S3 (09/04-03/13)
1.2 TSI	77	105	1,2	04/10-03/13	ATE	F	1	54	221619	221620	FF	25,0
1.4 TFSI	92	125	1,4	09/07-03/13	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102	1,6	09/04-03/13	ATE	F	1	54	221619	221620	FF	25,0
1.6 E-Power	75	102	1,6	01/11-03/13	ATE	F	1	54	221619	221620	FF	25,0
1.6 FSI	85	115	1,6	09/04-09/07	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	05/09-03/13	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	05/09-03/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TFSI	118	160	1,8	11/06-03/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TFSI quattro	118	160	1,8	07/08-03/13	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	09/04-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	09/04-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	03/06-03/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	06/05-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	120	163	2,0	06/06-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	09/04-03/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	09/04-03/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V quattro	103	140	2,0	11/05-03/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI quattro	103	140	2,0	01/06-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI quattro	125	170	2,0	03/06-03/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	09/04-03/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI quattro	147	200	2,0	09/04-03/13	ATE	F	1	54	221619	221620	FF	25,0
3.2 V6 quattro	184	250	3,2	09/04-05/09	ATE	F	1	54	221619	221620	FF	25,0
S3 quattro	195	265	2,0	06/08-03/13	ATE	F	1	54	221619	221620	FF	25,0
S3 quattro	188	256	2,0	07/08-03/13	ATE	F	1	54	221619	221620	FF	25,0
TT (8J3) (08/06-06/14)
1.8 TFSI	118	160	1,8	06/08-06/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI quattro	125	170	2,0	06/08-06/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	155	211	2,0	05/10-06/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	08/06-06/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI quattro	155	211	2,0	05/10-06/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI quattro	147	200	2,0	06/08-06/10	ATE	F	1	54	221619	221620	FF	25,0
3.2 V6 quattro	184	250	3,2	08/06-06/10	ATE	F	1	54	221619	221620	FF	25,0
TT Roadster (8J9) (03/07-06/14)
1.8 TFSI	118	160	1,8	06/08-06/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI quattro	125	170	2,0	06/08-06/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	03/07-06/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	155	211	2,0	05/10-06/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI quattro	155	211	2,0	05/10-06/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI quattro	147	200	2,0	06/08-06/10	ATE	F	1	54	221619	221620	FF	25,0
3.2 V6 quattro	184	250	3,2	03/07-06/10	ATE	F	1	54	221619	221620	FF	25,0

SEAT

Type	KW	CH	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur
ALTEA (5P1) (03/04-)
1.2 TSI	77	105	1,2	04/10-	ATE	F	1	54	221619	221620	FF	25,0
1.4 16V	63	86	1,4	05/06-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125	1,4	11/07-	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102	1,6	03/04-	ATE	F	1	54	221619	221620	FF	25,0
1.6 LPG	75	102	1,6	09/09-	ATE	F	1	54	221619	221620	FF	25,0
1.6 Multifuel	75	102	1,6	11/10-05/11	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	10/09-	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	11/10-	ATE	F	1	54	221619	221620	FF	25,0
1.8 TFSI	118	160	1,8	01/07-	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	04/04-	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	66	90	1,9	08/09-	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	05/04-03/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	03/04-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	03/06-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	11/05-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	03/04-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	04/06-05/09	ATE	F	1	54	221619	221620	FF	25,0
ALTEA XL (5P5, 5P8) (10/06-)
1.8 TFSI	118	160	1,8	01/07-	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	66	90	1,9	08/09-12/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	10/06-12/10	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105	1,2	04/10-	ATE	F	1	54	221619	221620	FF	25,0
1.4 16V	63	86	1,4	10/06-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125	1,4	11/07-	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102	1,6	10/06-	ATE	F	1	54	221619	221620	FF	25,0
1.6 LPG	75	102	1,6	09/09-	ATE	F	1	54	221619	221620	FF	25,0
1.6 Multifuel	75	102	1,6	10/06-11/10	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	10/09-	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	11/10-	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI 4x4	77	105	1,9	06/09-12/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	10/06-03/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	06/07-12/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	10/06-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	11/06-03/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	10/06-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4x4	103	140	2,0	10/10-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	103	140	2,0	06/07-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	125	170	2,0	06/07-06/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	155	211	2,0	05/09-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	10/06-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI 4x4	155	211	2,0	05/09-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI 4x4	147	200	2,0	06/07-05/09	ATE	F	1	54	221619	221620	FF	25,0
IBIZA IV (6J5, 6P1) (03/08-)
1.0 TSI	81	110	1,0	05/15-06/17	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	09/15-06/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	77	105	1,4	05/15-06/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	06/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140	1,4	10/13-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	11/15-06/17	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110	1,6	07/15-06/17	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	05/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	03/08-06/10	ATE	F	1	54	221619	221620	FF	25,0
2.0	85	115	2,0	10/08-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	105	143	2,0	01/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
IBIZA IV SC (6J1, 6P5) (06/08-)
1.8 TSI Cupra	141	192	1,8	11/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	07/08-06/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	105	143	2,0	01/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	81	110	1,0	05/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86	1,2	08/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	09/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	77	105	1,4	05/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	01/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140	1,4	10/13-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	11/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI Cupra	132	180	1,4	06/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110	1,6	07/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	05/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
IBIZA IV ST (6J8, 6P8) (03/10-)
1.0 TSI	81	110	1,0	05/15-07/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	02/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140	1,4	10/13-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	11/15-07/16	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	09/15-07/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	77	105	1,4	05/15-07/16	ATE	F	1	54	221619	221620	FF	25,0
LEON (1P1) (05/05-)
1.2 TSI	77	105	1,2	02/10-12/12	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125	1,4	11/07-12/12	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102	1,6	07/05-12/12	ATE	F	1	54	221619	221620	FF	25,0
1.6 LPG	75	102	1,6	12/09-12/12	ATE	F	1	54	221619	221620	FF	25,0
1.6 MultiFuel	75	102	1,6	07/05-08/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160	1,8	06/07-12/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	07/05-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	05/06-12/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	07/05-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	10/05-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	07/05-12/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	05/05-03/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	155	211	2,0	06/09-12/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	136	185	2,0	09/05-05/06	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	177	240	2,0	11/06-05/11	ATE	F	1	54	221619	221620	FF	25,0
TOLEDO III (5P2) (04/04-05/09)
1.8 TFSI	118	160	1,8	01/07-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	10/04-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	01/06-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	11/05-05/09	ATE	F	1	54	221619	221620	FF	25,0
TOLEDO IV (KG3) (07/12-)
1.0 TSI	81	110	1,0	05/17-04/19	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	70	95	1,0	05/17-04/19	ATE	F	1	54	221619	221620	FF	25,0
1.2	55	75	1,2	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	05/15-05/17	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	66	90	1,2	05/15-05/17	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105	1,2	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86	1,2	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	66	90	1,4	05/15-04/19	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125	1,4	05/15-04/19	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122	1,4	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110	1,6	05/15-04/19	ATE	F	1	54	221619	221620	FF	25,0
1.6	77	105	1,6	07/13-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	85	115	1,6	05/15-04/19	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	06/13-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0

SKODA

Type	KW	CH	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur
FABIA II (542) (01/07-12/14)
1.2 TDI	55	75	1,2	05/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105	1,2	03/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI RS	132	180	1,4	05/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	03/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
FABIA II Combi (545) (10/07-12/14)
1.2 TDI	55	75	1,2	05/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105	1,2	03/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI RS	132	180	1,4	05/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	03/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
FABIA III Estate (NJ5) (08/14-12/22)
1.0	44	60	1,0	10/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.0	55	75	1,0	10/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	81	110	1,0	08/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	70	95	1,0	08/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	10/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	66	90	1,2	10/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	55	75	1,4	05/15-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	77	105	1,4	10/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	66	90	1,4	10/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110	1,6	01/15-12/22	ATE	F	1	54	221619	221620	FF	25,0
FABIA III (NJ3) (08/14-06/21)
1.0	44	60	1,0	08/14-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.0	55	75	1,0	08/14-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	81	110	1,0	08/14-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	70	95	1,0	08/14-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	08/14-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	66	90	1,2	08/14-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	55	75	1,4	05/15-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	77	105	1,4	08/14-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	66	90	1,4	08/14-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI R5	92	125	1,4	02/18-06/21	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110	1,6	01/15-06/21	ATE	F	1	54	221619	221620	FF	25,0
OCTAVIA II (1Z3) (02/04-06/13)
1.6 FSI	85	115	1,6	02/04-10/08	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152	1,8	03/09-06/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160	1,8	06/07-04/13	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	06/04-12/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	11/04-10/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	02/04-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110	2,0	03/10-06/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	11/05-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	02/04-04/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI RS	125	170	2,0	04/06-02/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	10/05-02/13	ATE	F	1	54	221619	221620	FF	25,0
OCTAVIA II Combi (1Z5) (02/04-06/13)
1.6 FSI	85	115	1,6	02/04-10/08	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	06/09-04/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152	1,8	03/09-06/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160	1,8	06/07-04/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI 4x4	112	152	1,8	03/09-02/13	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI 4x4	118	160	1,8	11/08-02/13	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	09/04-12/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI 4x4	77	105	1,9	11/04-12/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	11/04-10/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI 4x4	110	150	2,0	11/04-04/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110	2,0	03/10-06/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	11/05-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	100	136	2,0	02/04-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	02/04-05/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4x4	103	140	2,0	05/10-02/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	81	110	2,0	05/11-02/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	103	140	2,0	07/06-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI RS	125	170	2,0	04/06-02/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	10/05-02/13	ATE	F	1	54	221619	221620	FF	25,0
RAPID (NH3, NK3, NK6) (07/12-03/22)
1.2 TSI	77	105	1,2	07/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86	1,2	07/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	66	90	1,4	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125	1,4	05/15-03/22	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122	1,4	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110	1,6	05/15-03/22	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	81	110	1,0	06/17-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	70	95	1,0	06/17-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.2	55	75	1,2	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 LPG	63	86	1,2	07/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 LPG	55	75	1,2	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	66	90	1,2	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.6	77	105	1,6	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 SRE	66	90	1,6	06/15-03/22	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	85	115	1,6	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	07/12-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	08/13-05/15	ATE	F	1	54	221619	221620	FF	25,0
RAPID Spaceback (NH1) (07/12-12/19)
1.0 TSI	81	110	1,0	06/17-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	70	95	1,0	06/17-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.2	55	75	1,2	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 LPG	63	86	1,2	07/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 LPG	55	75	1,2	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	66	90	1,2	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105	1,2	07/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86	1,2	07/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	66	90	1,4	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125	1,4	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122	1,4	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.6	77	105	1,6	07/12-06/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 SRE	81	110	1,6	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	85	115	1,6	05/15-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	07/12-12/19	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	08/13-05/15	ATE	F	1	54	221619	221620	FF	25,0
ROOMSTER (5J7) \| PRAKTIK (03/06-05/15)
1.2 TDI	55	75	1,2	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105	1,2	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86	1,2	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
SUPERB II (3T4) (03/08-05/15)
1.4 TSI	92	125	1,4	07/08-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	09/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160	1,8	03/08-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152	1,8	03/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI 4x4	112	152	1,8	03/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI 4x4	118	160	1,8	11/08-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	03/08-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	03/08-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	07/08-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	01/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4x4	103	140	2,0	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	125	170	2,0	09/08-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
SUPERB II Estate (3T5) (10/09-05/15)
1.4 TSI	92	125	1,4	10/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	09/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152	1,8	10/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160	1,8	10/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI 4x4	112	152	1,8	10/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI 4x4	118	160	1,8	10/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	10/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	10/09-03/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	10/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	10/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4x4	103	140	2,0	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	125	170	2,0	10/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200	2,0	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
YETI (5L) (05/09-12/17)
1.2 TSI	77	105	1,2	09/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	05/15-12/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125	1,4	05/15-12/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122	1,4	06/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI 4x4	110	150	1,4	05/15-12/17	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110	1,6	04/14-12/17	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI 4x4	118	160	1,8	05/09-12/17	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI 4x4	112	152	1,8	11/09-12/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	110	150	2,0	05/15-12/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110	2,0	11/09-12/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	11/11-12/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	103	140	2,0	05/09-12/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	110	150	2,0	05/15-12/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	125	170	2,0	11/09-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4x4	81	110	2,0	11/09-12/17	ATE	F	1	54	221619	221620	FF	25,0

SKODA (Light truck)

Type	KW	CH	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur
FABIA III Praktik (NJ5) (10/14-12/22)
1.2 TSI	81	110	1,2	10/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	77	105	1,4	10/14-12/22	ATE	F	1	54	221619	221620	FF	25,0
ROOMSTER Praktik (5J) (03/07-05/15)
1.2 TDI	55	75	1,2	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86	1,2	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	03/10-05/15	ATE	F	1	54	221619	221620	FF	25,0

VOLKSWAGEN

Type	KW	CH	Chassis	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur
BEETLE (5C1, 5C2) \| BJALLA (04/11-07/19)
1.2 TSI	77	105		1,2	07/11-07/19	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI 16V	77	105		1,2	12/14-07/19	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	10/11-07/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150		1,4	12/14-07/19	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	10/11-07/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	04/11-07/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	06/14-09/18	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	110	150		2,0	07/14-09/18	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	04/11-07/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	211		2,0	12/12-07/19	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	162	220		2,0	12/14-09/18	ATE	F	1	54	221619	221620	FF	25,0
2.5	125	170		2,5	04/11-07/19	ATE	F	1	54	221619	221620	FF	25,0
BEETLE Convertible (5C7, 5C8) (12/11-07/19)
1.2 TSI	77	105		1,2	12/11-07/19	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI 16V	77	105		1,2	12/14-07/19	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	12/11-07/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150		1,4	12/14-09/18	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	12/11-07/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	04/12-07/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	06/14-09/18	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	110	150		2,0	09/14-09/18	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	12/11-07/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	210		2,0	12/12-07/19	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	162	220		2,0	12/14-09/18	ATE	F	1	54	221619	221620	FF	25,0
2.5	125	170		2,5	12/11-07/16	ATE	F	1	54	221619	221620	FF	25,0
CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) (03/04-05/15)
1.2 TSI	77	105		1,2	09/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86		1,2	09/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4	55	75		1,4	03/04-05/06	ATE	F	1	54	221619	221620	FF	25,0
1.4	59	80		1,4	05/06-08/10	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102		1,6	04/04-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 BiFuel	75	102		1,6	05/11-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	09/07-08/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4motion	103	140		2,0	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	81	110		2,0	08/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	75	102		1,6	08/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	55	75		1,6	08/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105		1,9	04/04-08/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	55	75		1,9	09/05-08/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI 4motion	77	105		1,9	05/08-08/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 EcoFuel	80	109		2,0	04/06-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 SDI	51	70		2,0	03/04-08/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	05/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	08/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
CC B7 (358) (11/11-12/16)
2.0 TDI 4motion	103	140		2,0	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150		1,4	05/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI MultiFuel	118	160		1,4	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152		1,8	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160		1,8	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	110	150		2,0	05/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	135	184		2,0	05/15-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	130	177		2,0	12/12-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	125	170		2,0	11/11-01/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	130	177		2,0	12/12-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	210		2,0	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
3.6 FSI 4motion	220	300		3,6	11/11-12/16	ATE	F	1	54	221619	221620	FF	25,0
EOS (1F7, 1F8) (03/06-08/15)
1.4 TSI	118	160		1,4	05/08-08/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	11/07-08/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 FSI	85	115		1,6	06/06-05/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150		2,0	03/06-05/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	06/06-05/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	11/10-08/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	05/08-08/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	03/06-08/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	210		2,0	11/09-08/15	ATE	F	1	54	221619	221620	FF	25,0
3.2 V6	184	250		3,2	06/06-05/09	ATE	F	1	54	221619	221620	FF	25,0
3.6 V6	191	260		3,6	05/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
GOLF PLUS V (5M1, 521) (12/04-12/13)
1.6 FSI	85	115		1,6	12/04-05/08	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86		1,2	05/10-12/13	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105		1,2	11/09-12/13	ATE	F	1	54	221619	221620	FF	25,0
1.4 16V	55	75		1,4	01/05-11/06	ATE	F	1	54	221619	221620	FF	25,0
1.4 16V	59	80		1,4	05/06-12/13	ATE	F	1	54	221619	221620	FF	25,0
1.4 FSI	66	90		1,4	07/05-11/06	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140		1,4	05/06-06/08	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	125	170		1,4	05/06-06/08	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	03/09-12/13	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	06/07-12/13	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	06/08-12/13	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102		1,6	05/05-12/13	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105		1,9	01/05-01/09	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	66	90		1,9	05/05-12/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150		2,0	05/05-06/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	01/09-12/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	96	131		2,0	05/05-05/07	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	05/05-12/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	12/05-05/11	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	01/05-12/13	ATE	F	1	54	221619	221620	FF	25,0
GOLF V (1K1) (10/03-02/09)
1.4 16V	59	80		1,4	05/06-11/08	ATE	F	1	54	221619	221620	FF	25,0
1.4 16V	55	75		1,4	10/03-05/06	ATE	F	1	54	221619	221620	FF	25,0
1.4 FSI	66	90		1,4	10/03-07/06	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140		1,4	05/06-11/08	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	05/07-11/08	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	125	170		1,4	11/05-11/08	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102		1,6	01/04-11/08	ATE	F	1	54	221619	221620	FF	25,0
1.6 FSI	85	115		1,6	10/03-07/08	ATE	F	1	54	221619	221620	FF	25,0
1.6 MultiFuel	75	102		1,6	10/07-11/08	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	66	90		1,9	05/04-11/08	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105		1,9	10/03-11/08	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI 4motion	77	105		1,9	08/04-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150		2,0	01/04-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI 4motion	110	150		2,0	08/04-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 GTI	169	230		2,0	09/06-12/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 GTI	147	200		2,0	10/04-02/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 SDI	55	75		2,0	01/04-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	10/03-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	11/05-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	12/04-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	10/03-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4motion	103	140		2,0	08/04-11/08	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	103	140		2,0	01/07-11/08	ATE	F	1	54	221619	221620	FF	25,0
GOLF VI (5K1) (10/08-11/13)
1.2 TSI	63	86		1,2	05/10-11/12	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105		1,2	11/08-11/12	ATE	F	1	54	221619	221620	FF	25,0
1.4	59	80		1,4	10/08-11/12	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	10/08-11/12	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	10/08-11/12	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	02/09-11/12	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160		1,8	06/09-01/11	ATE	F	1	54	221619	221620	FF	25,0
2.0 GTi	155	210		2,0	04/09-11/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 GTi	173	235		2,0	05/11-11/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 GTi	147	200		2,0	06/09-11/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	04/09-11/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	10/08-05/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	10/08-11/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	103	140		2,0	05/09-11/12	ATE	F	1	54	221619	221620	FF	25,0
2.5	125	170		2,5	07/09-05/13	ATE	F	1	54	221619	221620	FF	25,0
GOLF VI Convertible (517) (03/11-05/16)
1.2 TSI	77	105		1,2	03/11-05/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	11/11-05/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125		1,4	11/13-05/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150		1,4	11/13-05/16	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	03/11-05/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 GTI	155	211		2,0	05/12-05/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 R	195	265		2,0	01/13-05/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	11/11-05/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	11/13-05/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	110	150		2,0	11/13-05/16	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	162	220		2,0	11/13-05/16	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI 16V	77	105		1,2	11/13-05/16	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	03/11-05/16	ATE	F	1	54	221619	221620	FF	25,0
GOLF VI Variant (AJ5) (07/09-07/13)
1.2 TSI	77	105		1,2	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90		1,6	12/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI 4motion	77	105		1,6	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	01/10-07/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86		1,2	07/10-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.4	59	80		1,4	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102		1,6	07/09-07/13	ATE	F	1	54	221619	221620	FF	25,0
1.6 BiFuel	75	102		1,6	07/09-12/10	ATE	F	1	54	221619	221620	FF	25,0
1.6 MultiFuel	75	102		1,6	07/10-07/13	ATE	F	1	54	221619	221620	FF	25,0
GOLF V Variant (1K5) (06/07-)
1.4 TSI	90	122		1,4	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
1.4	59	80		1,4	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140		1,4	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	125	170		1,4	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	07/08-07/09	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102		1,6	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
1.6 MultiFuel	75	102		1,6	11/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105		1,9	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI 4motion	77	105		1,9	01/08-07/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	06/07-07/09	ATE	F	1	54	221619	221620	FF	25,0
JETTA III (1K2) (09/04-10/10)
1.4 TSI	90	122		1,4	05/07-10/10	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140		1,4	07/06-10/10	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	07/08-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150		2,0	08/05-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	09/05-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	10/05-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	10/06-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	08/05-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	10/05-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.5	110	150		2,5	01/06-10/10	ATE	F	1	54	221619	221620	FF	25,0
2.5	125	170		2,5	07/08-10/10	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	125	170		1,4	07/06-10/10	ATE	F	1	54	221619	221620	FF	25,0
JETTA IV (162, 163, AV3, AV2) (04/10-)
1.2 TSI	77	105		1,2	10/10-12/17	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI 16V	77	105		1,2	08/14-12/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150		1,4	04/11-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	04/11-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	05/11-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125		1,4	08/14-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150		1,4	08/14-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI Hybrid	125	170		1,4	04/11-	ATE	F	1	54	221619	221620	FF	25,0
1.6	63	86		1,6	03/13-	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110		1,6	09/15-	ATE	F	1	54	221619	221620	FF	25,0
1.6	77	105		1,6	12/11-	ATE	F	1	54	221619	221620	FF	25,0
1.6 MPi	66	90		1,6	09/15-04/18	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	04/10-07/15	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	125	170		1,8	07/14-	ATE	F	1	54	221619	221620	FF	25,0
2.0	85	115		2,0	06/10-12/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	02/11-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	110	150		2,0	07/14-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	10/10-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	12/10-	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	211		2,0	12/12-12/17	ATE	F	1	54	221619	221620	FF	25,0
2.5	125	170		2,5	04/10-	ATE	F	1	54	221619	221620	FF	25,0
PASSAT ALLTRACK B7 Variant (365) (01/12-12/14)
1.8 TSI	112	152		1,8	01/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160		1,8	01/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	01/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	103	140		2,0	01/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	125	170		2,0	01/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	130	177		2,0	01/13-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI 4motion	155	210		2,0	01/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
PASSAT B6 (3C2) (03/05-11/10)
1.4 TSI	90	122		1,4	05/07-07/10	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI EcoFuel	110	150		1,4	01/09-07/10	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102		1,6	05/05-07/10	ATE	F	1	54	221619	221620	FF	25,0
1.6 FSI	85	115		1,6	03/05-06/08	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	08/09-07/10	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160		1,8	05/07-07/10	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152		1,8	11/09-07/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105		1,9	03/05-07/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 BlueTDI	105	143		2,0	01/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150		2,0	03/05-07/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	125	170		2,0	08/07-07/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI 4motion	110	150		2,0	09/05-07/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	03/05-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	03/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	120	163		2,0	08/05-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	90	122		2,0	08/05-07/06	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	08/05-07/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	88	120		2,0	11/05-05/07	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	11/08-07/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	03/05-07/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4motion	103	140		2,0	03/05-08/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	103	140		2,0	03/05-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	125	170		2,0	05/09-07/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	07/05-07/10	ATE	F	1	54	221619	221620	FF	25,0
PASSAT B6 Variant (3C5) (08/05-10/11)
1.6 TDI	77	105		1,6	08/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	05/07-11/10	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI EcoFuel	110	150		1,4	01/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102		1,6	08/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
1.6 FSI	85	115		1,6	08/05-06/08	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160		1,8	05/07-10/11	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152		1,8	11/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105		1,9	08/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 BlueTDI	105	143		2,0	01/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150		2,0	08/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI 4motion	110	150		2,0	09/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	90	122		2,0	08/05-02/06	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	08/05-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	120	163		2,0	08/05-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	08/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	08/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	88	120		2,0	11/05-05/07	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	11/08-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	08/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4motion	103	140		2,0	08/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	125	170		2,0	05/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	103	140		2,0	08/05-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	08/05-11/10	ATE	F	1	54	221619	221620	FF	25,0
PASSAT B7 (362) (08/10-12/14)
1.4 TSI	90	122		1,4	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	11/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	125	170		2,0	08/10-01/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	103	140		2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	210		2,0	11/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
3.6 FSI 4motion	220	300		3,6	01/11-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI EcoFuel	110	150		1,4	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI MultiFuel	118	160		1,4	11/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152		1,8	02/11-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160		1,8	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	130	177		2,0	12/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	130	177		2,0	01/13-12/14	ATE	F	1	54	221619	221620	FF	25,0
PASSAT B7 Variant (365) (08/10-12/15)
1.4 TSI	90	122		1,4	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	118	160		1,4	11/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI EcoFuel	110	150		1,4	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI MultiFuel	118	160		1,4	11/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152		1,8	02/11-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160		1,8	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	130	177		2,0	12/12-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	130	177		2,0	01/13-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	125	170		2,0	08/10-01/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	103	140		2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	210		2,0	11/10-12/15	ATE	F	1	54	221619	221620	FF	25,0
3.6 FSI 4motion	220	300		3,6	01/11-12/14	ATE	F	1	54	221619	221620	FF	25,0
PASSAT CC B6 (357) (02/08-01/12)
1.4 TSI MultiFuel	118	160		1,4	01/11-01/12	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160		1,8	06/08-01/12	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152		1,8	11/08-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 BlueTDI	105	143		2,0	05/09-11/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	120	163		2,0	02/08-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	06/08-01/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	06/08-01/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	06/08-05/11	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	103	140		2,0	08/09-01/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	125	170		2,0	11/09-01/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	06/08-01/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	211		2,0	11/10-01/12	ATE	F	1	54	221619	221620	FF	25,0
POLO V (6R1, 6C1) (03/09-)
1.0	44	60		1,0	01/14-	ATE	F	1	54	221619	221620	FF	25,0
1.0	55	75		1,0	01/14-	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	81	110		1,0	11/14-	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	70	95		1,0	11/14-	ATE	F	1	54	221619	221620	FF	25,0
1.2	44	60		1,2	06/09-	ATE	F	1	54	221619	221620	FF	25,0
1.2	51	70		1,2	06/09-	ATE	F	1	54	221619	221620	FF	25,0
1.2 TDI	55	75		1,2	10/09-	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110		1,2	01/14-	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	66	90		1,2	05/11-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	77	105		1,2	11/09-	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI 16V	66	90		1,2	02/14-10/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 (6R1)	63	85	6R1	1,4	03/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 BiFuel	60	82		1,4	03/10-01/11	ATE	F	1	54	221619	221620	FF	25,0
1.4 GTI	132	180		1,4	05/10-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	66	90		1,4	02/14-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	55	75		1,4	03/14-10/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	77	105		1,4	05/14-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150		1,4	05/14-10/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140		1,4	10/12-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.6	77	105		1,6	01/10-	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110		1,6	07/14-10/17	ATE	F	1	54	221619	221620	FF	25,0
1.6	66	90		1,6	07/14-10/17	ATE	F	1	54	221619	221620	FF	25,0
1.6 BiFuel	60	82		1,6	01/11-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	06/09-	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	55	75		1,6	06/09-	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90		1,6	06/09-	ATE	F	1	54	221619	221620	FF	25,0
1.8 GTI	141	192		1,8	11/14-	ATE	F	1	54	221619	221620	FF	25,0
2.0 R WRC	162	220		2,0	08/13-05/14	ATE	F	1	54	221619	221620	FF	25,0
POLO V Saloon (602, 604, 612, 614) (05/10-)
1.4 TSi	92	125		1,4	05/16-	ATE	F	1	54	221619	221620	FF	25,0
1.6	77	105		1,6	05/10-	ATE	F	1	54	221619	221620	FF	25,0
1.6	81	110		1,6	05/15-	ATE	F	1	54	221619	221620	FF	25,0
1.6	66	90		1,6	07/14-	ATE	F	1	54	221619	221620	FF	25,0
1.6	63	86		1,6	11/10-	ATE	F	1	54	221619	221620	FF	25,0
SCIROCCO III (137, 138) (05/08-11/17)
1.4 TSI	118	160		1,4	05/08-11/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150		1,4	07/15-11/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	90	122		1,4	08/08-11/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	92	125		1,4	11/13-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 R	206	280		2,0	05/14-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	130	177		2,0	01/13-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	05/09-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	135	184		2,0	05/14-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	08/08-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	11/10-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	110	150		2,0	11/13-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSI	147	200		2,0	05/08-11/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	210		2,0	11/09-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	132	180		2,0	11/13-11/17	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	162	220		2,0	11/13-11/17	ATE	F	1	54	221619	221620	FF	25,0
TOURAN (1T1, 1T2) (02/03-05/10)
1.4 TSI	103	140		1,4	02/06-05/10	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	125	170		1,4	11/06-05/10	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI EcoFuel	110	150		1,4	05/09-05/10	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102		1,6	07/03-05/10	ATE	F	1	54	221619	221620	FF	25,0
1.6 BiFuel	75	102		1,6	11/06-05/10	ATE	F	1	54	221619	221620	FF	25,0
1.6 FSI	85	115		1,6	02/03-01/07	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	74	100		1,9	02/03-05/04	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105		1,9	08/03-05/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	66	90		1,9	11/04-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 EcoFuel	80	109		2,0	02/06-05/09	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150		2,0	10/03-01/07	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136		2,0	02/03-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	12/05-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	12/05-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140		2,0	08/03-05/10	ATE	F	1	54	221619	221620	FF	25,0
TOURAN (1T3) (05/10-05/15)
1.2 TSI	77	105		1,2	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140		1,4	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	125	170		1,4	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI EcoFuel	110	150		1,4	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105		1,6	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90		1,6	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	130	177		2,0	01/13-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170		2,0	05/10-01/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140		2,0	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110		2,0	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0

VOLKSWAGEN (Light truck)

Type	KW	CH	Moteur	Année	Marque	FR	N	Diamètre	Gauche	Droite	P.O.S	Epaisseur
CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) (03/04-05/15)
1.2 TSI	77	105	1,2	09/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	63	86	1,2	09/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4	55	75	1,4	03/04-05/06	ATE	F	1	54	221619	221620	FF	25,0
1.4	59	80	1,4	05/06-08/10	ATE	F	1	54	221619	221620	FF	25,0
1.6	75	102	1,6	04/04-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 BiFuel	75	102	1,6	05/11-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	75	102	1,6	08/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	55	75	1,6	08/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	77	105	1,9	04/04-08/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	55	75	1,9	09/05-08/10	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI 4motion	77	105	1,9	11/08-08/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 EcoFuel	80	109	2,0	04/06-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 SDI	51	70	2,0	03/04-08/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	125	170	2,0	05/12-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	81	110	2,0	08/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	09/07-08/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	62	85	2,0	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V	103	140	2,0	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 16V 4motion	103	140	2,0	11/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	81	110	2,0	08/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI 4motion	62	85	2,0	12/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
GOLF Hatchback Van (1K1) (11/03-02/06)
TDI	77	105	1,9	11/03-02/06	ATE	F	1	54	221619	221620	FF	25,0
GOLF PLUS Van (521) (01/09-08/14)
1.4 TSi	90	122	1,4	01/09-08/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSi	118	160	1,4	01/09-09/12	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDi	77	105	1,6	02/09-08/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	103	140	2,0	11/09-08/14	ATE	F	1	54	221619	221620	FF	25,0
GOLF VAN VI Variant (AJ5) (07/09-05/14)
1.4 TSi	90	122	1,4	07/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSi	118	160	1,4	07/09-10/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	103	140	2,0	07/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
GOLF VI Van (5K1) (10/08-11/12)
1.4 TSi	118	160	1,4	10/08-11/12	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDi BlueMotion	77	105	1,6	05/09-11/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 GTi	155	211	2,0	02/09-11/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	125	170	2,0	05/10-11/12	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	103	140	2,0	09/09-11/12	ATE	F	1	54	221619	221620	FF	25,0
TSi	90	122	1,4	10/08-11/12	ATE	F	1	54	221619	221620	FF	25,0
PASSAT B7 Estate Van (365) (08/10-12/14)
1.4 TSi BlueMotion	90	122	1,4	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI BlueMotion	77	105	1,6	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	112	152	1,8	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
1.8 TSI	118	160	1,8	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	130	177	2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI BlueMotion	103	140	2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI BlueMotion	125	170	2,0	08/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TSI	155	211	2,0	11/10-12/14	ATE	F	1	54	221619	221620	FF	25,0
3.6 FSi 4motion	220	299	3,6	01/11-12/14	ATE	F	1	54	221619	221620	FF	25,0
POLO V Hatchback Van (6R1, 6C1) (03/09-)
1.0 TSI	70	95	1,0	11/14-	ATE	F	1	54	221619	221620	FF	25,0
1.0 TSI	81	110	1,0	11/14-10/17	ATE	F	1	54	221619	221620	FF	25,0
1.2	44	60	1,2	03/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.2 BlueMotion	51	69	1,2	03/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.2 TDi BlueMotion	55	75	1,2	10/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSi BlueMotion	77	105	1,2	11/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.4	63	86	1,4	03/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 GTi	132	179	1,4	05/10-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	66	90	1,4	02/14-	ATE	F	1	54	221619	221620	FF	25,0
1.4 TDI	77	105	1,4	03/14-10/17	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	110	150	1,4	05/14-	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDi	77	105	1,6	06/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDi	55	75	1,6	06/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDi BlueMotion	66	90	1,6	06/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSi	66	90	1,2	05/11-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	81	110	1,2	01/14-	ATE	F	1	54	221619	221620	FF	25,0
1.2 TSI	66	90	1,2	02/14-	ATE	F	1	54	221619	221620	FF	25,0
SCIROCCO Van (137) (06/08-05/14)
1.4 TSi	118	160	1,4	06/08-05/14	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSi	90	122	1,4	08/08-05/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	125	170	2,0	05/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	103	140	2,0	08/08-05/14	ATE	F	1	54	221619	221620	FF	25,0
2.0 TFSi	155	211	2,0	11/09-05/14	ATE	F	1	54	221619	221620	FF	25,0
TOURAN Box Body/MPV (1T1, 1T2) (02/03-05/10)
1.9 TDI	77	105	1,9	08/03-11/06	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	74	101	1,9	10/03-05/05	ATE	F	1	54	221619	221620	FF	25,0
1.9 TDI	66	90	1,9	11/04-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 EcoFuel	80	109	2,0	02/06-11/06	ATE	F	1	54	221619	221620	FF	25,0
2.0 FSI	110	150	2,0	05/04-01/07	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	103	140	2,0	08/03-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	103	140	2,0	12/05-05/10	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	100	136	2,0	02/03-05/10	ATE	F	1	54	221619	221620	FF	25,0
FSI	85	116	1,6	02/03-11/06	ATE	F	1	54	221619	221620	FF	25,0
TOURAN Box Body/MPV (1T3) (05/10-05/15)
1.2 TSI	77	105	1,2	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	103	140	1,4	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSI	125	170	1,4	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.4 TSi EcoFuel	110	150	1,4	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	77	105	1,6	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
1.6 TDI	66	90	1,6	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDi	125	170	2,0	05/10-01/13	ATE	F	1	54	221619	221620	FF	25,0
2.0 TDI	103	140	2,0	05/10-05/15	ATE	F	1	54	221619	221620	FF	25,0

221619

Produits associés

SU221619B

SU221619A

KC22001S

221620

KC22001

KI54180

PI5479
